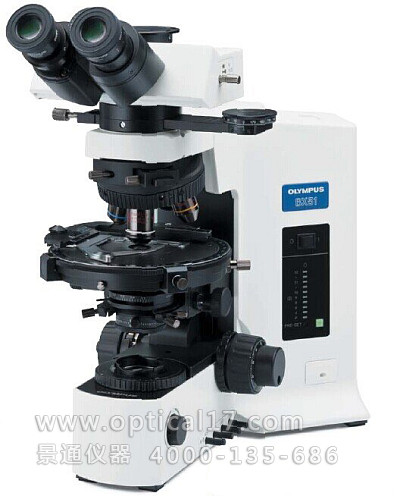

BX51P奧林巴斯偏光顯微鏡產品特點：
1、專業偏光顯微鏡用于地質、石油、化工、高分子、液晶等領域；
2、專用消應力物鏡提供高清晰、高反差的圖像；
3、用于單偏光、正象鏡檢、錐光鏡檢等多種觀察；
4、透射、反射、透反射3種主要照明方式，12V/100W光源；
5、長壽命鹵素光源使用；
6、熱臺、陰極發光等專業附件配套
BX51P奧林巴斯偏光顯微鏡配置案例：
| OLYMPUS BX51P 研究級偏光顯微鏡 | ||||
| 顯微鏡鏡體部分 | ||||
| 透反射一體顯微鏡架體 | BX51TRF-6? | Micrscope frame for transmitted and reflected microscopy with built-in filter holders for four filters (LBD,ND6, ND25,an open position for an optional filter of 45mm dia.), including hexagonal driver AB8804, immersion oil 8cc and shield sticker AD4908 (2pcs.) Corresponded to WEEE and RoHS regulations | 1個 | |
| 電源線 | UYCP-33 | Power cord | 1個 | |
| 防塵罩 | COVER-018 | For BX40/50/60/60M | 1個 | |
| 燈箱 | U-LH100-3-7(C) | Lamp house for 100W halogen including long connectioncord | 2個 | |
| 高亮度長壽命燈泡 | JC12V100WHAL-L | Halogen bulb (Philips No. 7724) | 8個 | |
| 三目觀察筒 | U-TR30-2 | Trinocular tube | 1個 | |
| 10倍標準高眼點寬視野目鏡，視野數22 | WHN10X-1-7 | Widefield eyepiece 10X | 1個 | |
| 屈光度校準目鏡 | WHN10X-H-1-7 | Widefield eyepiece 10X, focusable | 1個 | |
| 目鏡測微尺 | U-OCMC10/100X | Cross lines and 10mm/100 on X | 1個 | |
| 測微臺尺 | OBM1/100 | Stage micrometer, 1mm/100 for biological microscopes | 1個 | |
| 光路附件 | ||||
| 透射光擺入擺出聚光鏡 | U-SC3 | Swing-out condenser N.A. 0.9-0.16 | 1個 | |
| 白平衡濾色片 | U-25LBD | LBD filter slider for reflected illumination tube | 1個 | |
| 明暗場反射光路 | BX-RLA2 | Incident bright field/dark field illumination tube withaperture stop, field stop and filter slots | 1個 | |
| 專業偏振光 裝置 | ||||
| 十字絲目鏡 | CROSSWHN10X-1-7 | Widefield eyepiece 10X, with double cross lines, focusable | 1個 | |
| 反射光起偏器 | U-PO3 | Polarizer slider for reflected illumination tube | 1個 | |
| 360度旋轉帶刻度檢偏器（精度0.1度） | U-AN360P | Graduated rotatable analyzer | 1個 | |
| 透射聚光鏡（內置透射起偏器） | U-POC | Polarizing condenser,N.A. 0.9-0.18 (Swing out type) | 1個 | |
| 補償板插槽 | U-TAD | Adapter slider for compensator | 1個 | |
| 1/4波長補償板 | U-TP137 | 1/4 wavelength retardation plate | 1個 | |
| 1波長補償板 | U-TP530 | Tint plate | 1個 | |
| 旋轉載物臺 | U-SRP | Circular rotatable stage, graduated, including stage insert plate AC1211, centering knob (1 pair) and stage clip B2-SCB2 (1 pair) | 1個 | |
| XY 移動片夾 | U-FMP | Attachable mechanical stage, graduated | 1個 | |
| 高級檢偏器附件 | U-OPA | Polarizing intermediate attachment for Orthoscopic observation including orientation plate (B2-PJ) | 1個 | |
| 物鏡 及物鏡轉盤 | ||||
| 4 孔可定心物鏡轉盤 | U-P4RE | Quadruple, revolving nosepiece,including centering knob (1 pair) | 1個 | |
| 5倍半復消色差物鏡 | MPLFLN5X | M Plan Semi Apochromat objective lens 5x/N.A. 0.15, W.D. 20mm | 1個 | |
| 10倍半復消色差物鏡 | MPLFLN10X | M Plan Semi Apochromat objective lens 10x/N.A. 0.3, W.D. 11mm | 1個 | |
| 50倍半復消色差物鏡 | MPLFLN50X | M Plan Semi Apochromat objective lens 50x/N.A. 0.8, W.D. 1.0mm | 1個 | |
| 20倍 長焦距物鏡 (工作距離 12mm) | LMPLFLN20X | Long WD M Plan Semi Apochromat objective lens 20x/N.A. 0.4, W.D. 12mm | 1個 | |
作為OLYMPUS奧林巴斯偏光顯微鏡BX51P的廠家長期合作經銷商，景通儀器承諾所銷售的OLYMPUS奧林巴斯偏光顯微鏡百分之百正品，您可以通過景通儀器網站詳細了解OLYMPUS奧林巴斯偏光顯微鏡BX51P的詳細介紹、性能配置、產品參數、使用注意事項、參考銷售價格等。
